Forged Discs, Tubesheet and Baffle

Forged Discs, Tubesheet and Baffle (Forgings & Plate)

DELIVERY STANDARDS & SIZES
Discs forged up to 5000mm OD and over 500mm thick (depending on material)

• Disc maximum weight of 49 tons.
• Including hole drilling for heat exchanger tube sheets.
• Cladding by weld overlay with duplex, titanium and nickel alloys.

MATERIALS

• Carbon steels, stainless steels, duplex steels.
• Alloy steels, nickel alloys.
• Non-ferrous materials (Cu-Ni 90/10 & CU-Ni 70/30) and Titanium.
• Other material is available upon request.

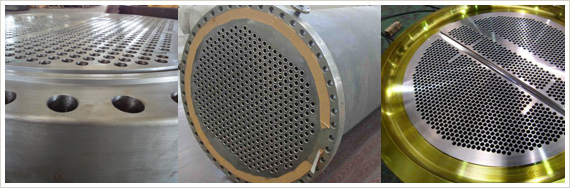

Discs and tube sheets can be delivered in pre-machined and finished machined condition. Complete whole drilling is available. The strict use of high quality raw material is guaranteed and proved by raw material certificate with each delivery. We also provide baffle plates.
